Mini pressure switch

YK manual Reset pressure switch

Font Size: [Big][Mid][Small] 2017-12-9    Views: 465

YK Series Manual Reset Pressure Controls

Product specification

◆ Adopt Eng. thread quick connector (copper flare connection) or brass tube (inclcapillary) welding connecting structure, easy to mount for different needs.

◆ Board-assembly (with mounting ears) or wire-assembly (no need for separate fixing)can be chosen for outer shell assembly.

◆ The air-tight bi-security disc and stainless steel sensor ensure that the switch opensinstantly automatically under the pressure and cuts off the connection between the switch contact and the pressure inside the system. The system will not be able to start up the

machine by accidentally actuating the pressure switch, which is safe and reliable enough to prevent the machine from damaging.

◆ The independent structure design of auto switching off and manual resetting enhances the maximum security and stability for the pressure protection.

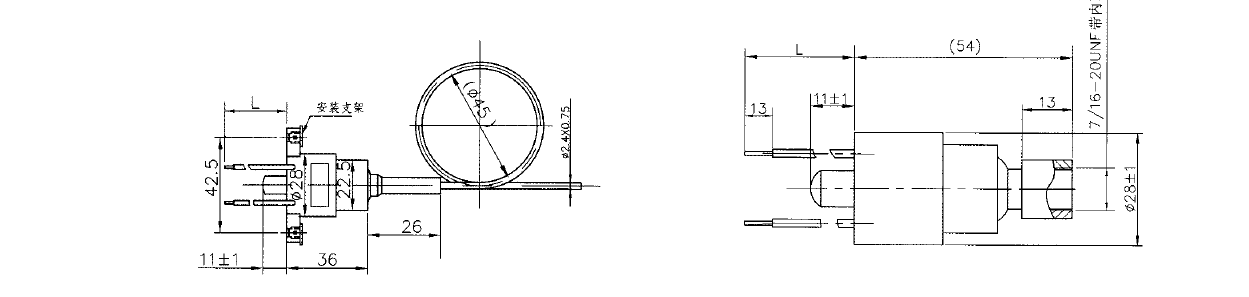

 Outline drawing

Operation Principle

 When pressure inside the system is higher than rated safe pressure, the sense disc starts to function instantly, resulting in pushing the security disc to the lock position by the rod and cutting off the switch by security disc through connecting rod at the same time. When the pressure reduces, the sense disc resets automatically while the security disc cant reset because it is at the lock position, hence the switch cant cut in. The system will reset to normal status only when pressing the outside button to push the security disc forcibly to unlock in order to cut in the switch.

 Application

 The series of switches are used to all air conditioning and refrigeration systems that require special pressure protection and broad range of extra-high pressure protection for the pressure systems of variety of tools and equipments. They can be directly installed on the pipeline or on the control panel based on the equipments situation.

 Technical data

◆ Working pressure range: 145~800PSI (1~5.5MPa)

◆ Burst Pressure: 5000PSI

◆ Ambient temperature: -30~+80

◆ System medium temperature: -50~+120

◆ Electrical Rating: At 24Vac, normal electric capacity: 125VA At 120/240Vac, normal electric capacity: 375VA

◆ Dielectric Strength: Between disconnected contacts: AC700V/S Terminal to outer shell: AC2000V/S

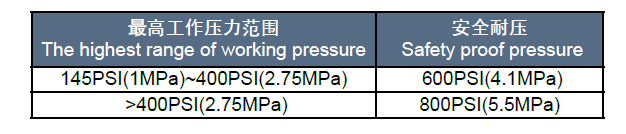

◆ Safety proof pressure: The pressure that the control can endure while not affects the rated motion value

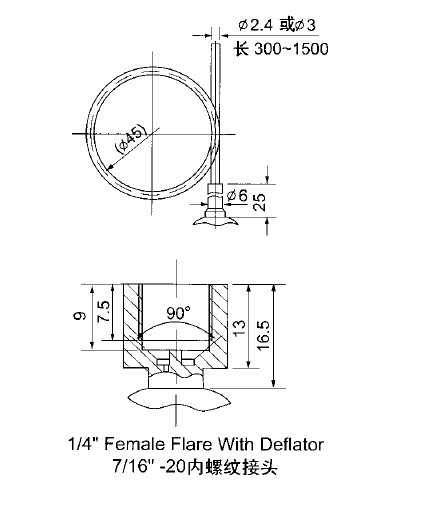

█ Connector drawing
