Temperature regulating water valve







 Introduction

TWV series temperature controlled water valves are usually installed on the inlet of condenser.

TWV series temperature controlled water valve takes outlet temperature of cooling water as signal. Its thermal bulb is inserted into outlet pipe. When the temperature rises, the valve is opened; the temperature reduces, the valve turns down.

TWV-F big size series, when the bulb temperature rises, the valve is closed. Vice Verse. Please consult with Shanghai Fengshen Controls for more information.

 Connection

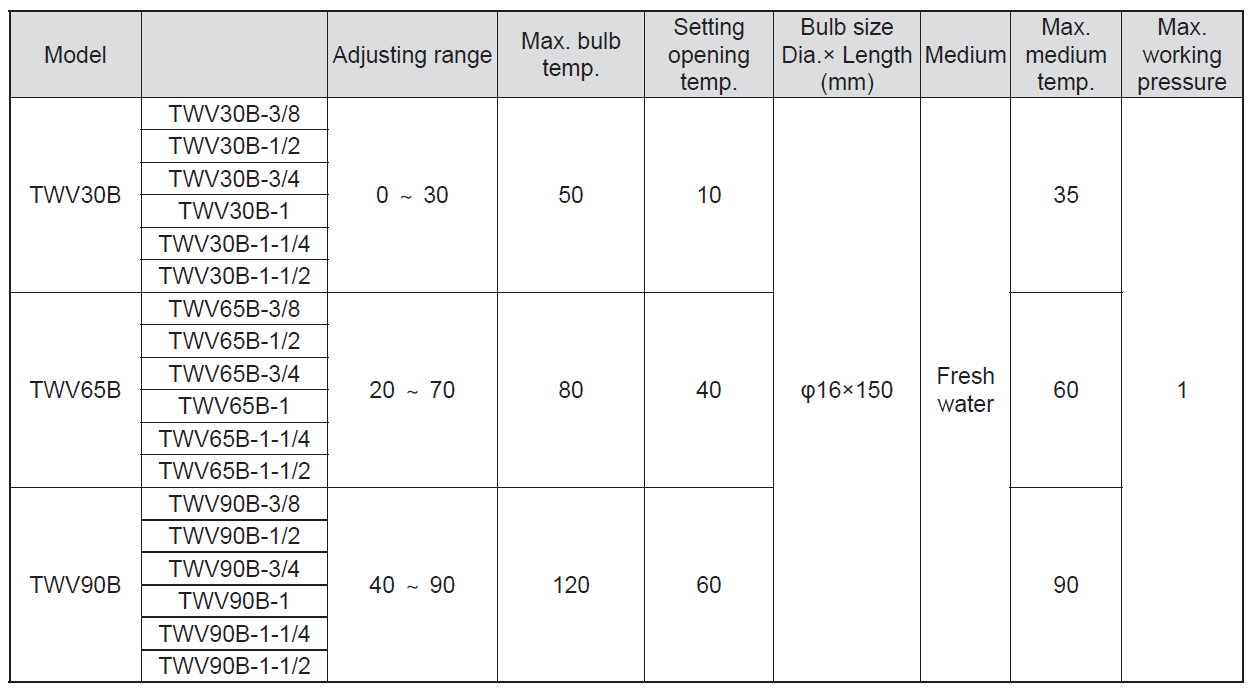

 Type  data

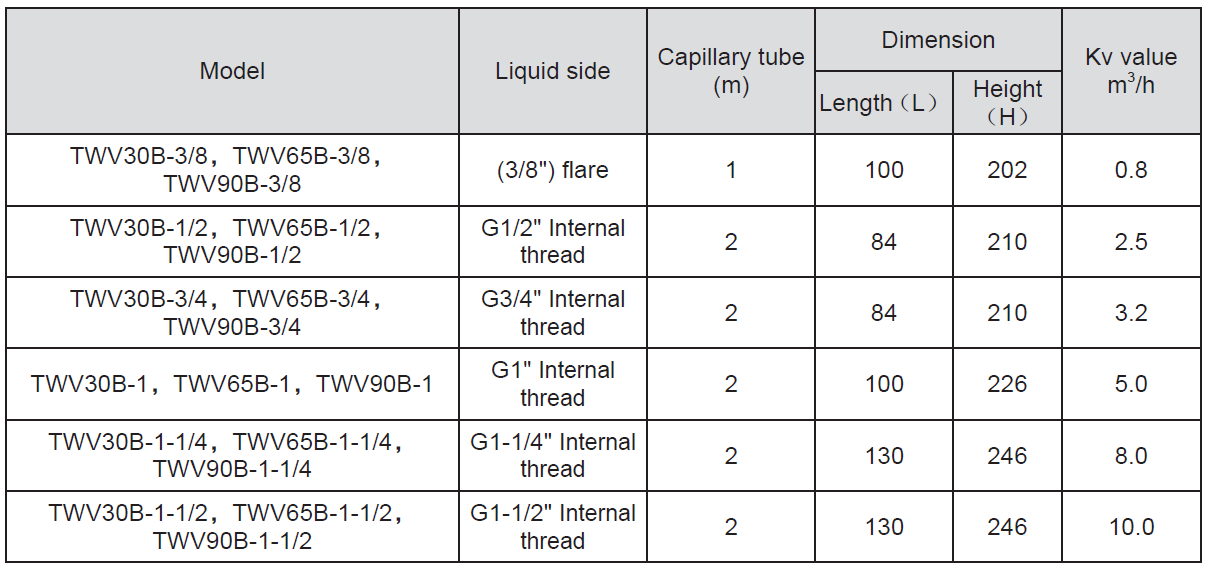

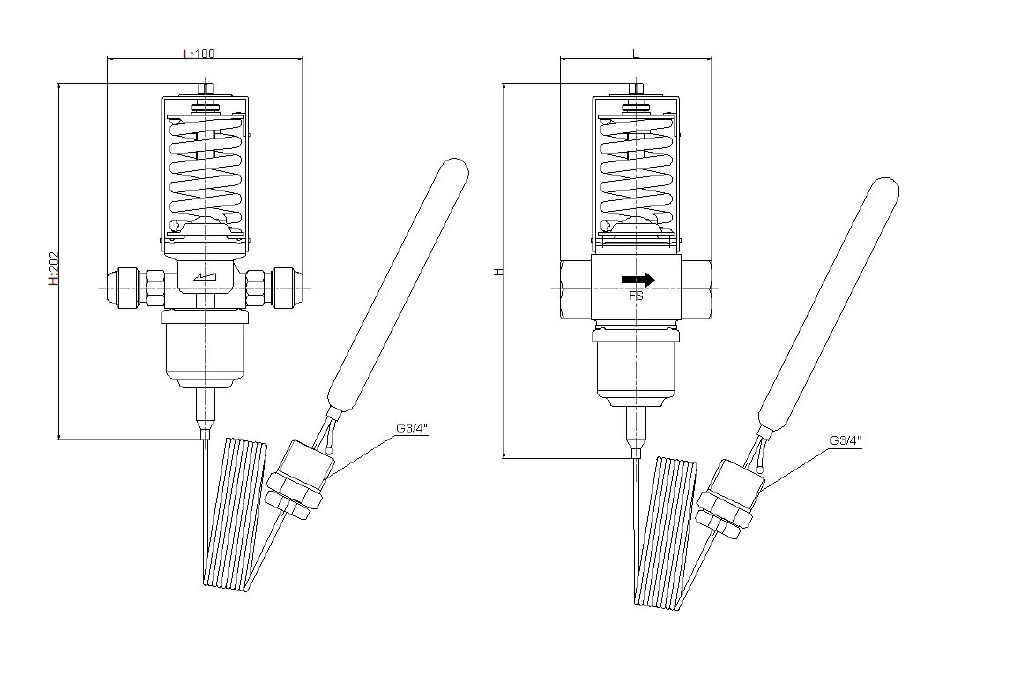

 Dimension (Unit: mm)

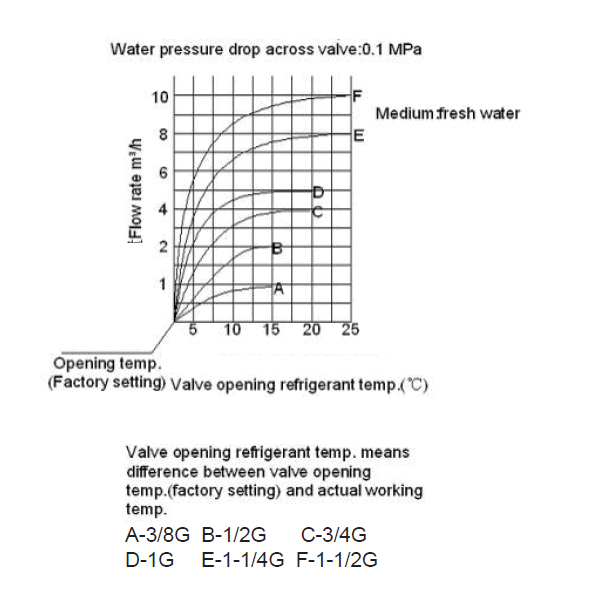

 Flow rate

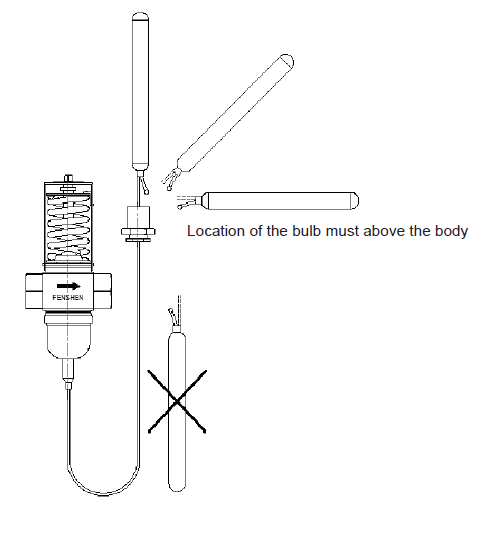

 Location of the bulb

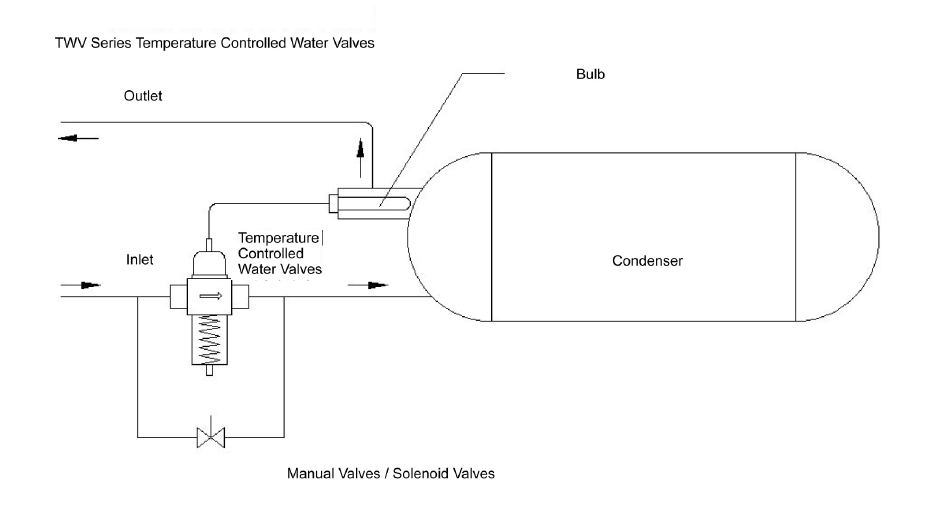

 System Diagram
