Single temperature switch









 Introduction

TC series temperature control is a temperature-controlled electric switch, can directly start the single-phrase A.C. Motors of up to about 1KW, or installed in the control current circuit of D.C. Motors and large A.C. motors.

TC series temperature control has a single pole double throw (SPDT) changeover switch. The position of switch depends on temperature control setting and bulb temperature.

 Technical data

Ambient temperature-20  +70

Cable connectionThe cable entry can be used for 15mm dia.

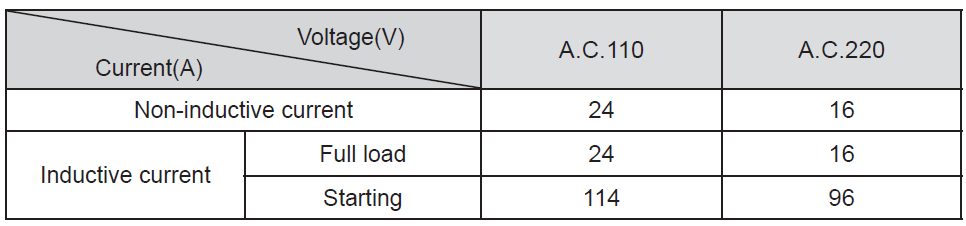

 Electrical data

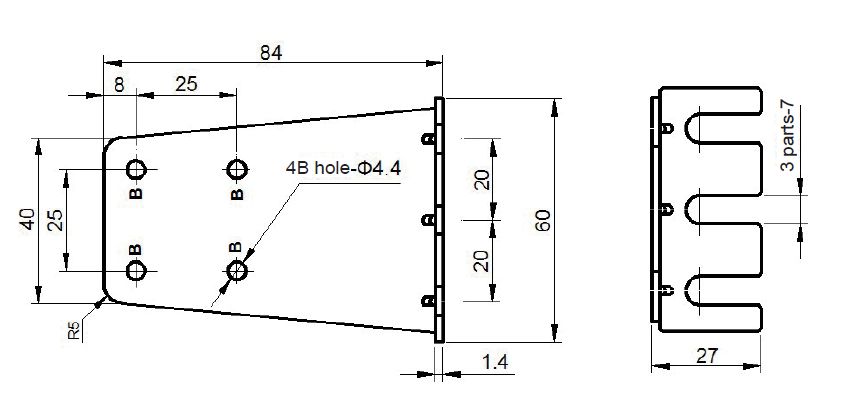

 Mounting plate

.

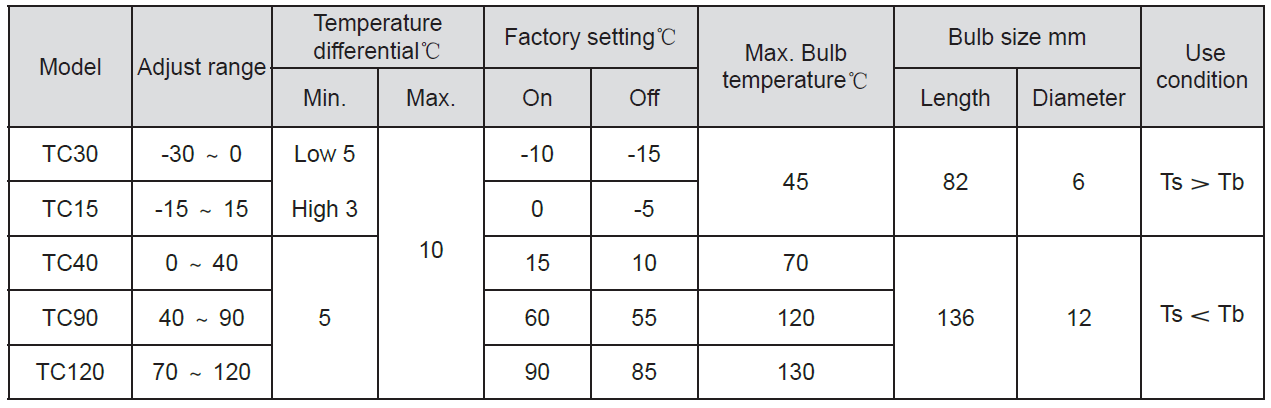

 Type & data



Notes: Ts--Itself temperature, Tb--Bulb temperature

Standard length of capillary is 1m, consult with Fengshen company with special requirement.

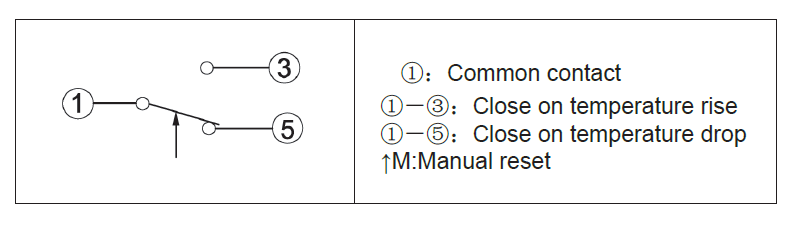

 Contact form

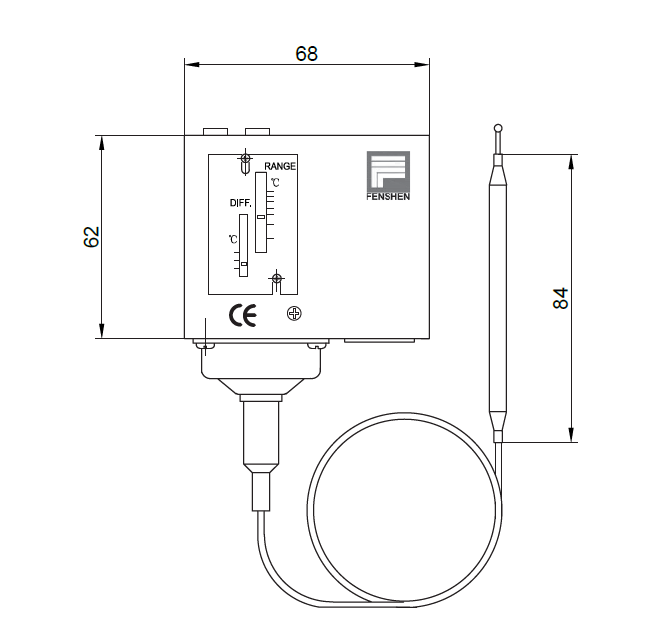

 Dimension (Unit: mm)
